CF 75 SPARK – Direct gas fired air heater
CF 75 SPARK
Direct gas fired air heater
Fixed direct gas fired air heaters
Designed for indoor and outdoor, the CF 75 is easy to install and the availability of cheap fuel allows to cut down on heating costs. They are suitable for areas with high air flow requirements like greenhouses or animal housing, warehouses, workshops, etc. They can work with a standard oil burner, LPG or natural gas burner.
Fixed direct gas fired air heaters
Designed for indoor and outdoor, the CF 75 is easy to install and the availability of cheap fuel allows to cut down on heating costs. They are suitable for areas with high air flow requirements like greenhouses or animal housing, warehouses, workshops, etc. They can work with a standard oil burner, LPG or natural gas burner.
KEY FEATURES
KEY FEATURES

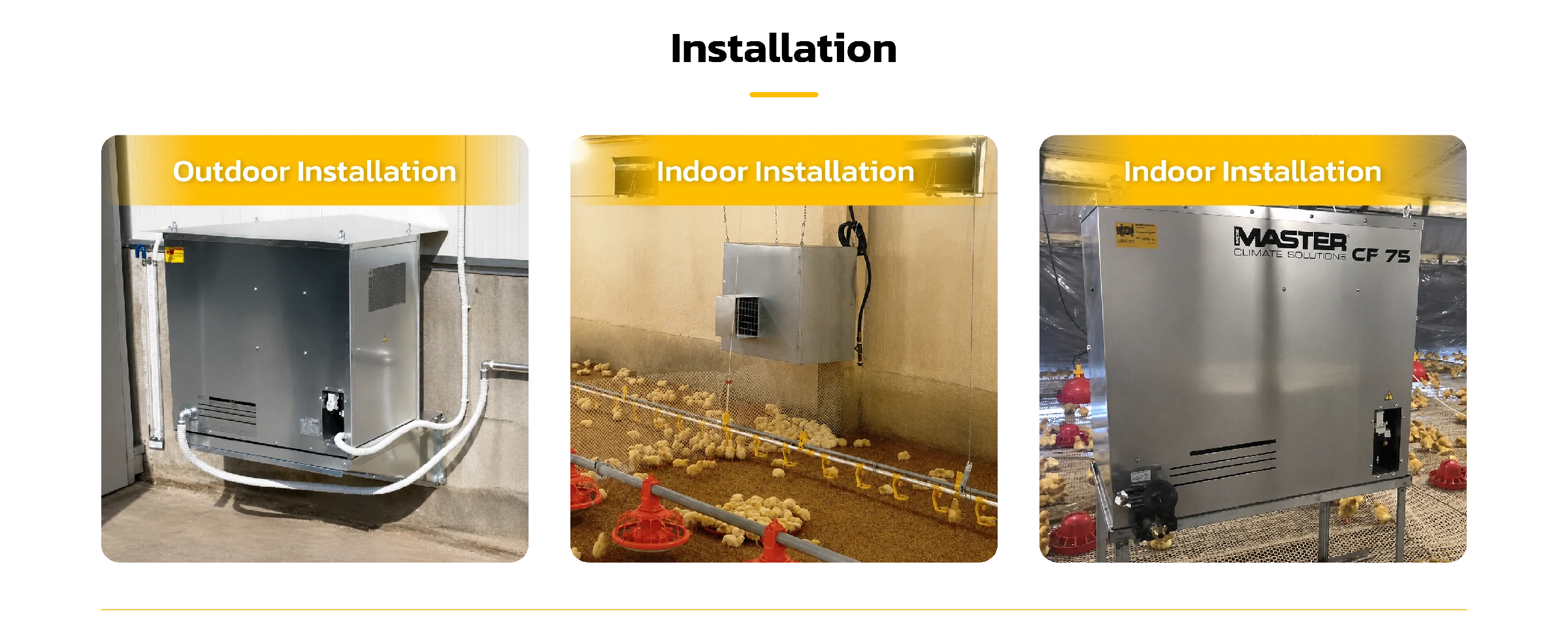

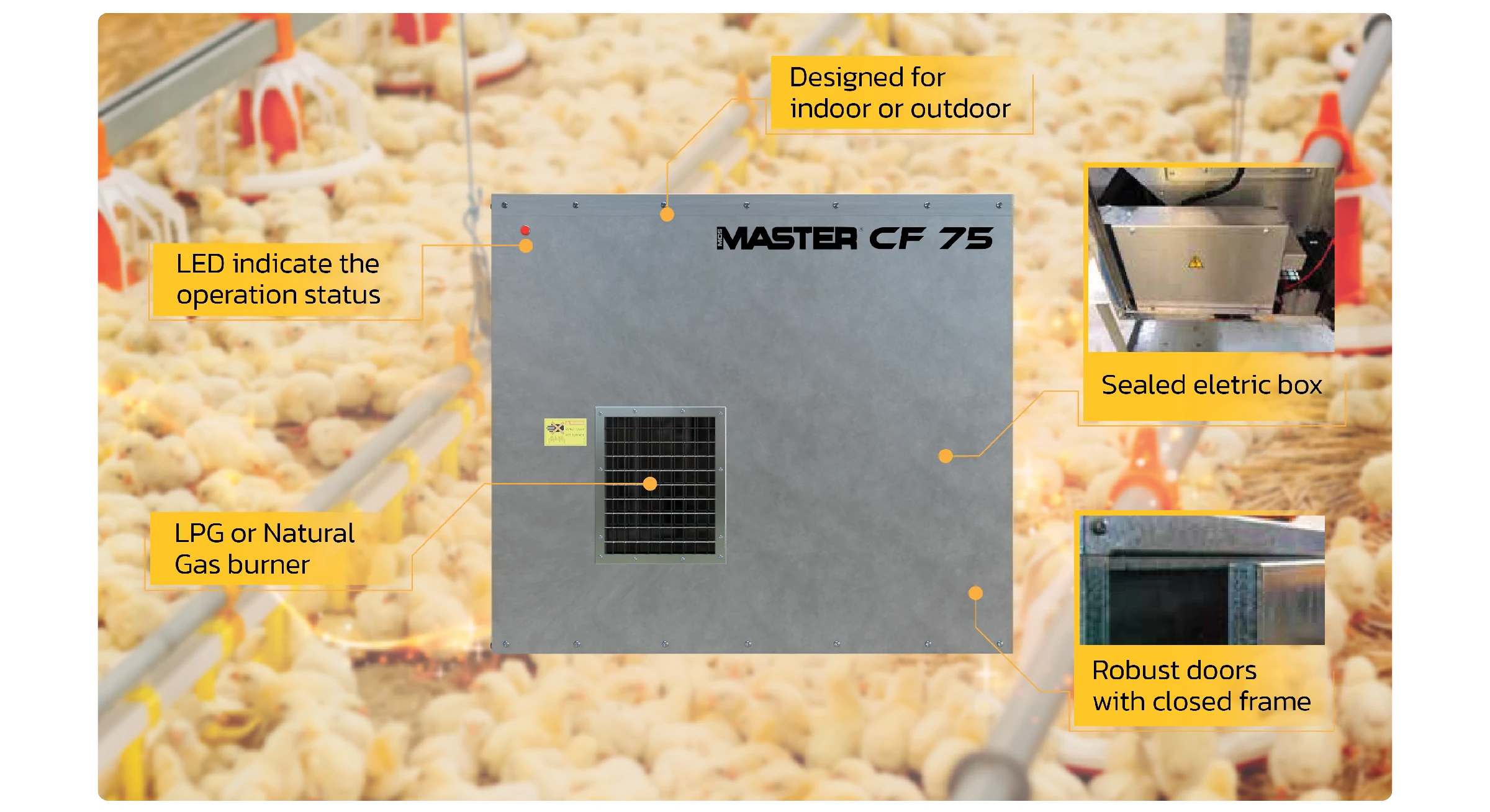

» Designed for indoor and outdoor use
» Can be placed on the floor or hung from a ceiling
» Galvanised steel combustion chamber
» Reliable twin spark ignition
» Natural gas or LP gas burner
» High efficiency heat exchanger
» Overheat thermostat
» Closed motor to assure safety and dependability even in harsh environments
» Galvanised steel body
» Designed for indoor and outdoor use
» Can be placed on the floor or hung from a ceiling
» Galvanised steel combustion chamber
» Reliable twin spark ignition
» Natural gas or LP gas burner
» High efficiency heat exchanger
» Overheat thermostat
» Closed motor to assure safety and dependability even in harsh environments
» Galvanised steel body
PRODUCT SPECIFICATIONS
PRODUCT SPECIFICATIONS
SPACIFICATIONS
Heating power
Heating power
Heating power
Air flow
Thermostat control
Fuel consumption (LPG)
Fuel consumption (natural gas)
Electric power
Power supply
Rated current
Product size (l x w x h)
Box size (l x w x h)
Net/gross weight
Pallet
Included in the box
UNITS
kW
Btu/h
kcal/h
m³/h
–
m³/h
m³/h
kW
V/Hz
A
mm
mm
kg
pcs
–
CF 75 SPARK
75
255,900
64,500
2,100
Optional
2.3
8
0.5
220-240/1ph/50
2.8
788 x 464 x 719
825 x 515 x 780
57/61
4
Diverter, LPG to natural GAS kit
